PL1672

Single Lenses for Power LEDs – 35mm diameter – 20.71mm height – 12°x 18° FWHM Clean Rectangular Beam Lens

SPECIFICATIONS:

Single Lenses for Power LEDs
35mm diameter – 20.71mm height
12°x 18° FWHM Clean Rectangular Beam Lens

• Material: Clear PMMA, Non-yellowing, 10-year guarantee**
• Full angle C0-C180 at 50% from maximum: ~ 12° x 18°
• Full angle C0-C180 at 10% from maximum: ~ 28° x 32°

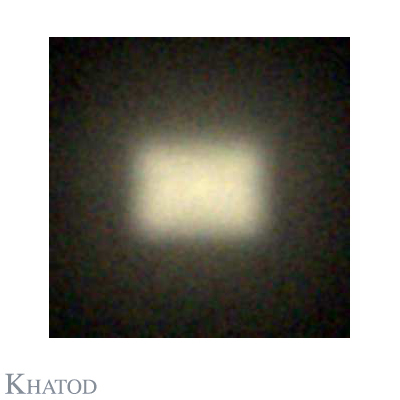

• The light spots here represented refer to tests carried out with LEDs having 3mm Dome, 2mm² LES and ~ 260lm@LED

PL1672 Lens is supplied without the holder. The holder KEL1672 can’t be used with the lens.

TYPICAL APPLICATIONS:
Canopy Light – Petrol Gas Station Light, Hospitality lighting, Indoor, Indoor architectural & general lighting, Indoor ceiling mounted luminaires, Indoor pendant luminaires, Indoor recessed fixtures, Industrial Light – Commercial Light, IR, Lowbay, Office, Outdoor, Outdoor architectural, Outdoor floodlights, Security lighting, Table and floor lamps, Task lighting, Track systems, Wall washing / flood lighting

**PL1672xx series is made of the same material used to produce PLEXIGLAS® Solar which guarantees it will show no yellowing for 10 years.
Yellowness Index (YI) according to the test standards for Arizona/Florida outdoor exposure testing:
– YI 6 under hot/dry conditions
– YI 8 under hot/wet conditions

Product images are for illustrative purposes only. All the data contained in this page are the property of Khatod Optoelectronic Srl and may change without prior notice. Production, marketing, distribution, sale of these products as well as their possible modifications and variations are only and exclusive right of Khatod Optoelectronic S.r.l. No company can perform any of these actions without written permission released by Khatod Optoelectronic S.R.L. – REPRODUCTION PROHIBITED –
