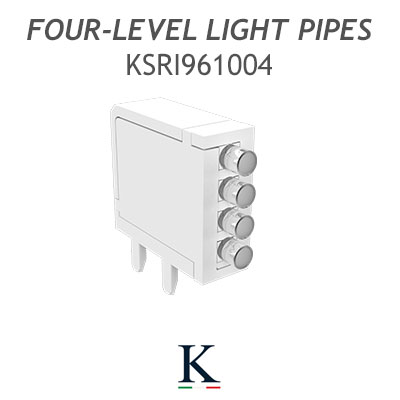

Right Angle Light Pipes for SMD LEDs
Right Angle Light Pipes for SMD LEDs
Pipe Material: PC Clear (UL94 V-0)
Shield Material: PC+ABS White (UL94 V-0)
Module dimension: 13.60mm x 4.90mm x H 15.20mm
Lens Dimension: Ø 2.00 × 2.40 mm
Mounting Method: Press-Fit
Recommended LEDs: 0402, 0603, 0805 SMD LEDs
PCB Mounting Hole: Ø 1.50mm
Recommended PCB thickness: 1.6 / 2.00mm
Operating Temperature: −40°C ~ +90°C
RoHS Compliance
Product images are for illustrative purposes only. All the data contained in this page are the property of Khatod Optoelectronic Srl and may change without prior notice. Production, marketing, distribution, sale of these products as well as their possible modifications and variations are only and exclusive right of Khatod Optoelectronic S.r.l. No company can perform any of these actions without written permission released by Khatod Optoelectronic S.R.L. – REPRODUCTION PROHIBITED –
