Home » Prodotti » PLL2174AX
Lenses for Mid Power LEDs – Module dimensions: 278.30mm x 43.00mm side, 9.94mm height – ±25° FWHM Double Asymmetric @ Max Candela ±25°
“LINEA 24×1 Lenses for Mid Power LEDs”
±25° FWHM Double Asymmetric @ Max Candela ±25°
Material: Clear PMMA, Non-yellowing, 10-year guarantee**
Full angle C0-C180 at 50% from maximum: ~ 25°

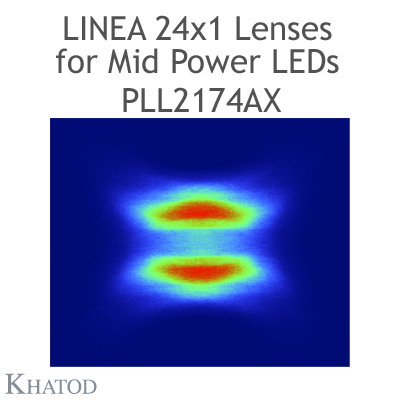

The light spots here represented refer to tests carried out with 24 LEDs, 0.9 Watt, 3030 size, ~3432lm@Strip
PLL2174xx are 1-row linear lens modules consisting of 24 lenses – 24×1 – with 11.6 mm pitch, for PCBs with 40mm maximum width. Linear modules, Engineered for stock&shop applications, PLL2174xx series is designed to comply with UGR low.
Can be used alone or with a protection glass plate.
**PLL2174 series is made of the same material used to produce PLEXIGLAS® Solar which guarantees it will show no yellowing for 10 years.
Yellowness Index (YI) according to the test standards for Arizona/Florida outdoor exposure testing:
– YI 6 under hot/dry conditions
– YI 8 under hot/wet conditions
Product images are for illustrative purposes only. All the data contained in this page are the property of Khatod Optoelectronic Srl and may change without prior notice. Production, marketing, distribution, sale of these products as well as their possible modifications and variations are only and exclusive right of Khatod Optoelectronic S.r.l. No company can perform any of these actions without written permission released by Khatod Optoelectronic S.R.L. – REPRODUCTION PROHIBITED –
